The Database Wizard in VB NET Express

The first part of the tutorial is here: Database project
for Visual Basic .NET Express users

The first part of the tutorial is here: Database project
for Visual Basic .NET Express users

Let’s make a start on our Database project. Create a new project and give it
the name AddressBook.

We need to select a Data Source. So click on Data Sources on the left of the
Toolbox (If you can’t see the tab, click View > Other Windows > Data Sources):

Data Source tab in  VB Net 2010

(In Visual Studion 2015/2017, click Data Sources again to get the Toolbox back.)

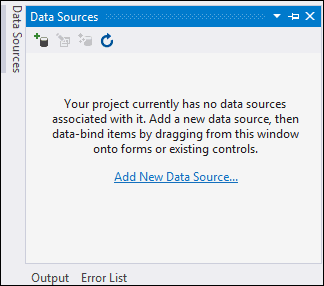

The Data Sources tab should look like this:

The Data Sources tab in Visual  Studio

To Add a New Data Source, click on the link “Add New Data Source”.
When you do, you’ll see the following:

Data Source Configuration Wizard

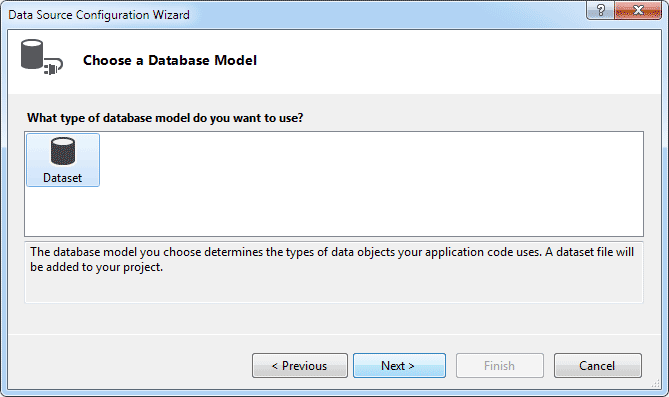

You want to connect to a Database. So select this option, and click Next. You’ll
see this screen appear:

The Dataset screen

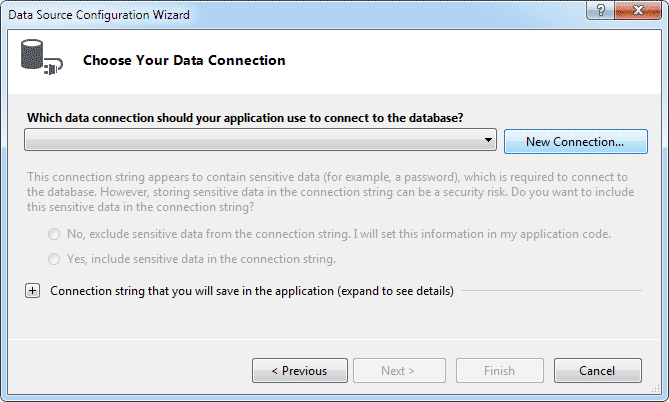

Select DataSet and click Next. You’ll then see a Choose Your Data Conection
screen:

The Data Connection screen

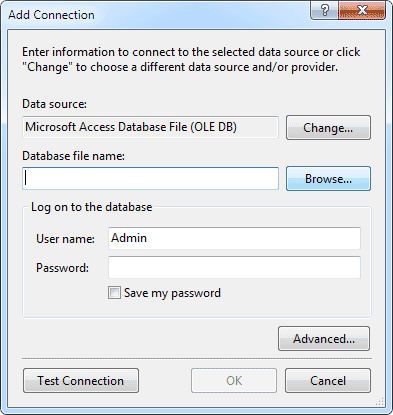

Click the New Connection button and another dialogue box pops up – –
the Add Connection dialogue box:

The Add Connection dialogue box:

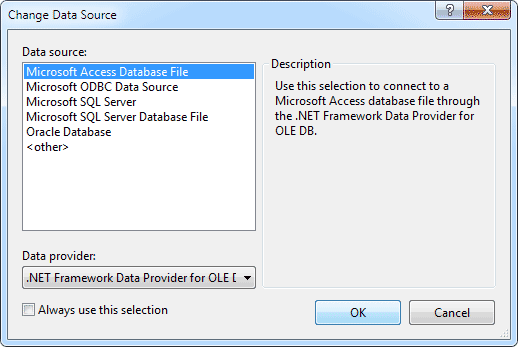

If your Data Source doesn’t say Microsoft Access Dataabase File (OLE DB) then
click the Change button to see this screen:

Changing the Data Source to an Access database

Select Microsoft Access Database File, then click Continue (or OK in some version
of Visual Studio). You’ll be returned to the Add connection dialogue box.

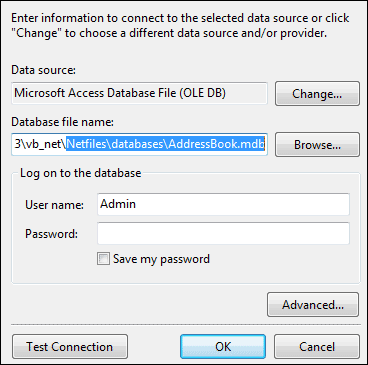

Click the Browse button and navigate to where on your computer you downloaded
our Access Database called AddressBook.mdb:

Selecting a database to connect to

Click Test Connection to see if everything is OK, and you’ll hopefully
see this:

The Test Connection Succeesed message

Click the OK button, then click the OK button on the Add Connection dialogue
box as well. You will be returned to the Data Source Configuration Wizard, which
should now look like this:

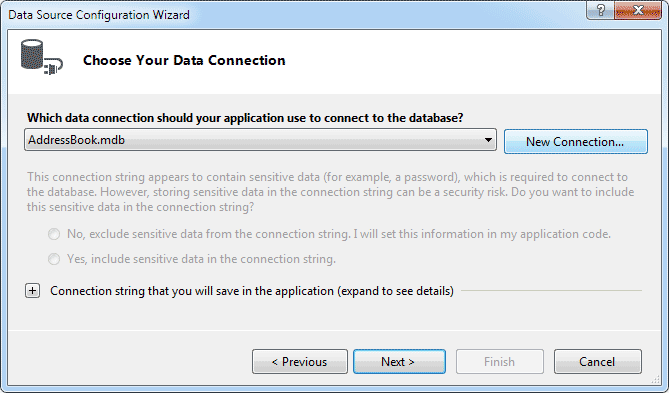

Datrabase file is now selected

Click Next to move to the next step of the Wizard. You may see a message box
appear, however. Click No on the message box to stop VB copying the database
each time it runs. You should then see this:

Save the connection string

Make sure there’s a tick in the box for “Save the connection”, and
then click Next:

(If you can’t see all the fields, click the arrow symbol on the left, next
to Tables.)

Here, you can select which tables and fields you want. Tick the Tables
box to include them all. (You can give your DataSet a different name, if you
prefer. The name AddressBookDataSet is one the wizard comes up with.) Click
Finish and you’re done.

When you are returned to your form, you should notice your new Data Source
has been added:

The data source tab

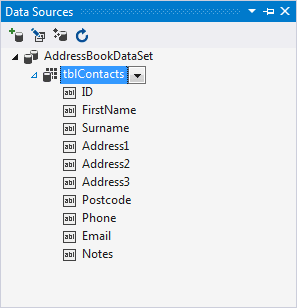

The Data Sources area now displays information about your database. Click the
arrow symbol next to tblContacts:

The database fields

All the Fields in the Address Book database are now showing.

To add a Field to your Form, click on one in the list. Hold down your left
mouse button, and drag it over to your form:

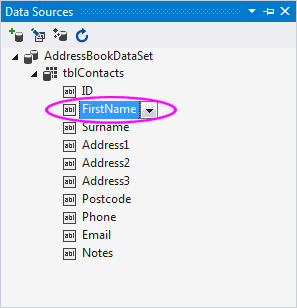

Drag a database field to the form

In the image above, the FName field is being dragged on the Form. Your
mouse cursor will change shape.

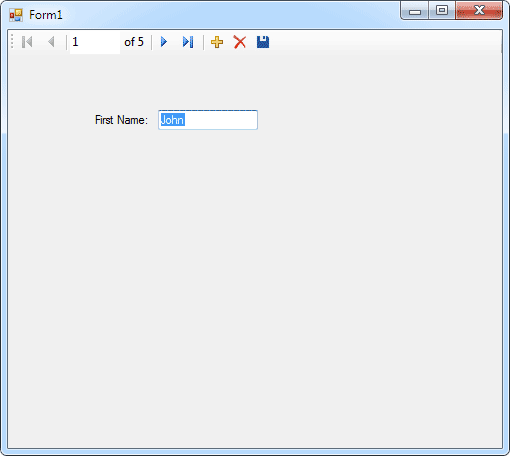

When your Field is over the Form, let go of your left mouse button. A textbox
and a label will be added:

Database objects on a VB NET form

There are two other things to notice: a navigation bar appears at the top
of the form, and a lot of strange objects have appeared in the object area at
the bottom:

Data Form objects

We’ll explore the Objects in a later section. But notice the Navigation bar
at the top of the form. Run your programme by hitting the F5 key on your keyboard.
You should see this:

The database form running

Click the Navigation arrows to scroll through the database, where it says 1
of 5. When you’ve played around with the controls, stop the form from running,
and return to Design View.

Drag and Drop more Fields to your form. But don’t align them yet. We’ll see
an easy way to do this. But once you’ve dragged the fields to your form, it
might look like this:

Labels and text boxes out of alignment on a VB NET form

I’m sure you’ll agree – that’s a very untidy form. But there’s a very easy
way to align all your controls. Try this:

  • Click on a label with your left mouse button
  • Hold down the Ctrl key on your keyboard, and select a second label
  • With the Ctrl key still held down, click each label in turn (leave the Notes
    label unselected)
  • When all the labels are selected, click on the Format menu at the
    top
  • From the Format menu select Align > Lefts. The left edges of the
    labels will align themselves
  • From the Format menu select Vertical Spacing > Make Equal. The space
    between each textbox will then be the same
  • Now do the same with the textboxes (but leave the Notes textbox unselected)

For the Notes Textbox, set the MultiLine property to True and
resize the textbox. With your new controls added, and nicely aligned, press
F5 to run your form. Your form might then be something like this:

The finished database project

Click the Navigation icons to move backwards and forwards through your database.

In the next part, you’ll move away from the Wizards and learn how to add your
own programming code to open up and manipulate databases.
